For the first quarter-century of the commercial internet, search engine algorithms operated almost exclusively as lexical and string-matching machines. While Google and Bing indexed images and videos, their underlying ranking systems relied heavily on surrounding HTML text, file naming conventions, alt attributes, and human transcripts. In 2026, the proliferation of multimodal foundation models—including Google Gemini 1.5 Pro, OpenAI GPT-4o, and specialized vision-language architectures—has fundamentally disrupted search mechanics. Search engines no longer view text, imagery, video frames, and spoken audio as separate data silos; they project them into a single, high-dimensional unified vector space. This definitive technical playbook outlines how enterprise digital architects and technical SEOs can optimize cross-media assets to command top visibility across next-generation generative AI search experiences, Google Lens, and AI Overviews.
The Multimodal Search Imperative:
Visual and conversational queries now constitute over 35% of total mobile search volume via Google Lens, Circle to Search, and AI voice assistants. Websites that optimize solely for textual keywords are completely invisible to multimodal retrieval engines that analyze video frames, spoken phonemes, and visual semantic embeddings in real time.
Figure 1: Shared Latent Vector Space — Projecting Text Tokens, Image Embeddings, Audio Phonemes, and Video Keyframes into a Unified Dimension.
Chapter 1: The Paradigm Shift from Text Strings to Unified Latent Spaces
Traditional SEO was built on inverted index tables. A search query like “how to replace a commercial espresso gasket” matched documents containing those exact tokens or their semantic synonyms. Multimodal AI search models operate through contrastive vision-language pre-training (such as OpenAI's CLIP, Google's SigLIP, and modern multimodal LLMs). In this architecture, neural encoders map visual imagery, audio spectrograms, and textual descriptions into a shared high-dimensional vector space (typically 768 to 1536 dimensions).
When a user captures a photo of a leaking espresso machine using Google Lens or asks a multimodal agent for help, the AI converts the visual input into a dense vector embedding. It then executes approximate nearest neighbor (ANN) vector math to retrieve content with the highest cosine similarity—regardless of whether that content is a technical PDF diagram, a 15-second YouTube Shorts video clip, or an authoritative engineering guide.
1. Mathematical Mechanics of Contrastive Vision-Language Alignment
Contrastive learning trains dual neural encoders—a Vision Transformer (ViT) for imagery and a Text Transformer for prose—to maximize the cosine similarity of paired image-text instances while minimizing the similarity of mismatched pairs. Given a batch of N (image, text) pairs, the normalized embedding vectors produce a similarity matrix scaled by a learnable temperature parameter τ:
Cosine_Similarity(I_i, T_j) = (I_i . T_j) / (||I_i|| * ||T_j||)
Loss_contrastive = - 0.5 * SUM[ log( exp(I_i . T_i / tau) / SUM_k(exp(I_i . T_k / tau)) ) +
log( exp(T_i . I_i / tau) / SUM_k(exp(T_i . I_k / tau)) ) ]Because the vector coordinates share identical geometric dimensions, a search engine crawler no longer needs text strings to understand that an uploaded blueprint of a hydraulic pump matches an engineering query. The visual feature vector itself occupies the exact spatial neighborhood of the conceptual solution.
| Search Dimension | Traditional Lexical Search (2010–2020) | Multimodal AI Search (2026+) | Technical Optimization Implication |
|---|---|---|---|
| Input Modality | Strictly text keywords entered into a search box | Photos, live camera streams, voice audio, screen recordings, text | Assets must provide cross-modal semantic reinforcement across all media layers. |
| Indexing Mechanism | Inverted index tables matching words to URL documents | Dense multimodal vector spaces and Knowledge Graph entity nodes | Optimize for cosine similarity and entity salience rather than keyword density. |
| Video Understanding | Video title, manual description tags, and text captions | Continuous keyframe visual analysis + acoustic Whisper transcription | Visual actions on screen must cleanly match the spoken narrative and timestamped schema. |
| Image Parsing | Alt text, file name, surrounding paragraph copy | Computer vision object bounding boxes, text OCR, aesthetic quality score | High-resolution, un-cluttered focal subjects with structured visual metadata. |
Chapter 2: Multimodal Retrieval-Augmented Generation (RAG) Architecture
Generative search experiences like Google AI Overviews and SearchGPT do not merely regurgitate training data; they deploy real-time Multimodal Retrieval-Augmented Generation (RAG). Understanding how this pipeline ingests and evaluates external web assets is critical for earning citations in AI-synthesized responses.

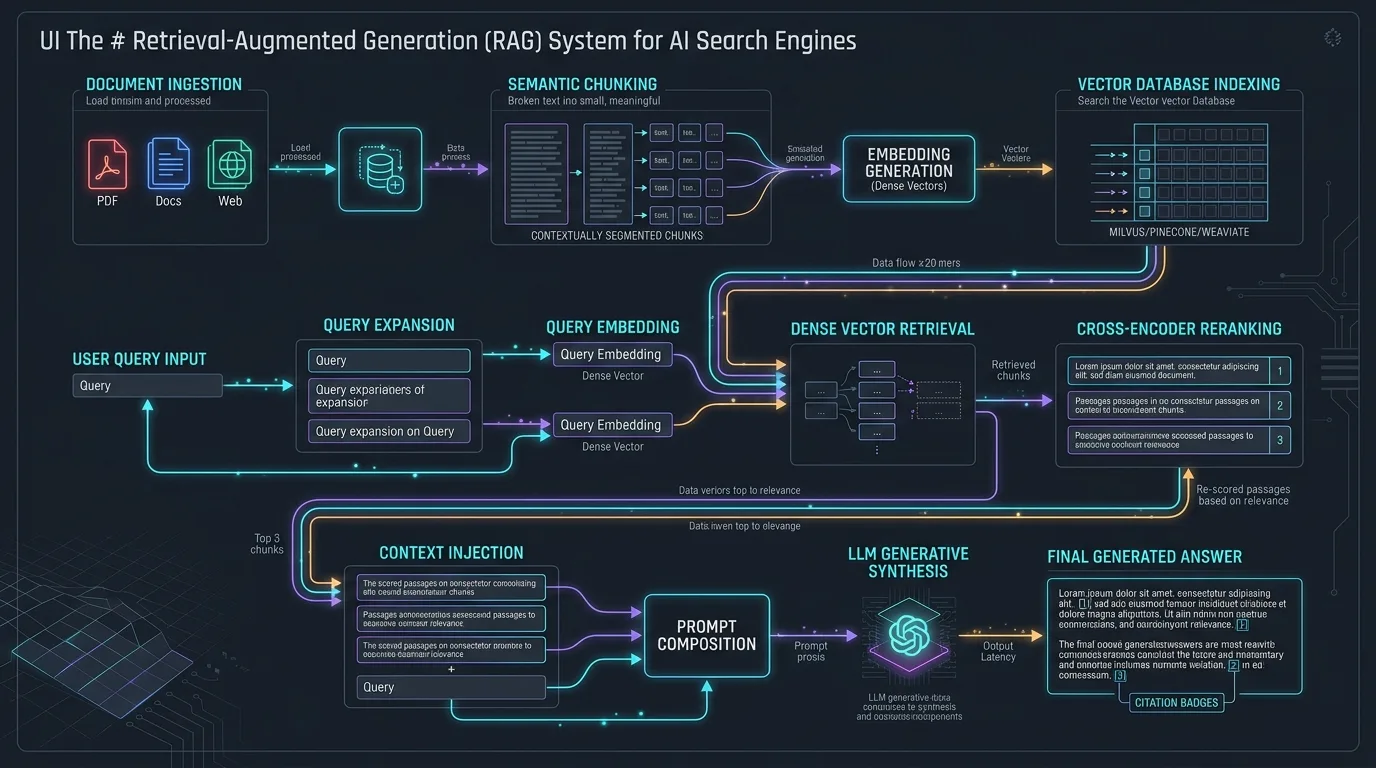

Figure 2: End-to-End Multimodal RAG Pipeline — Ingestion, Vectorization, Hybrid Cross-Modal Reranking, and LLM Synthesis.
1. The 5 Stages of the Multimodal RAG Pipeline
- Multimodal Ingestion & Chunking: The crawler downloads HTML, images, and embedded video streams. Instead of splitting text arbitrarily by character count, modern semantic chunkers divide documents by semantic thematic sections, associating each text passage directly with its accompanying images, tables, and video timestamps.
- Cross-Modal Dense Vectorization: Passages and media are vectorized using models like SigLIP or Gemini Embedding. Text and visual keyframes receive high-dimensional representations in a shared latent coordinate system.
- Hybrid Retrieval (BM25 + Dense ANN): When a user query arrives, the search engine executes a hybrid retrieval query combining exact keyword matching (BM25) with vector similarity search (Hierarchical Navigable Small World – HNSW) to pull the top 100 relevant candidates.
- Cross-Encoder Reranking: A heavyweight transformer cross-encoder scores the candidates, filtering out hallucination risks and evaluating content freshness, domain authority, and visual clarity.
- Generative Synthesis & Attribution: The top 3 to 5 multimodal chunks are supplied to the generation model context window. The LLM synthesizes an answer while hyperlinking source URLs and rendering carousel image thumbnails directly inside the response.
The Multi-Modal Information Gain Advantage:
Google's AI synthesis algorithms strongly favor web pages that exhibit high Multimodal Information Gain. A page that pairs authoritative technical text with an original vector diagram, an embedded demonstrative video clip, and an interactive data table receives a dramatically higher retrieval score than a page containing text alone.
Chapter 3: Visual Search Engineering and Google Lens Optimization
Google Lens now processes over 12 billion visual queries every single month. When an engineer points their smartphone camera at a circuit board or a consumer photographs a pair of shoes, Google's computer vision classifiers extract multiple visual feature vectors simultaneously.
1. The Core Visual Ranking Factors in 2026
Optimizing images for multimodal AI models requires engineering beyond standard alt tags:
- Focal Subject Salience: The primary entity of interest should occupy at least 40% to 60% of the image frame, free from extreme background clutter, watermarks, or obstructive text overlays.
- Optical Character Recognition (OCR) Readability: Gemini and Google Lens execute OCR on all text rendered within diagrams and infographics. Ensure embedded typography uses clean sans-serif typefaces (e.g., Inter, Roboto, Arial) with high contrast ratios (> 4.5:1) so AI vision models can parse embedded labels directly.
- High-Resolution Dimensionality: Provide imagery with a minimum resolution of 1200 pixels on the shortest edge. Multimodal neural networks downsample images to standard patch grids (e.g., 14x14 or 16x16 pixel patches); low-resolution files lose fine feature detail during patch tokenization.
- EXIF and Technical Color Hygiene: Retain standard sRGB color profiles and avoid aggressive lossy compression artifacts that create block noise, which confuses convolutional and vision transformer filters.
2. Structured Schema for Visual Entities
Reinforce visual assets by implementing structured ImageObject JSON-LD markup that explicitly defines the image subject, copyright holder, and licensable metadata:
{
"@context": "https://schema.org",
"@type": "ImageObject",
"contentUrl": "https://seobeen.com/uploads/content/enterprise-seo-attribution-funnel-model.webp",
"license": "https://seobeen.com/terms/content-license",
"acquireLicensePage": "https://seobeen.com/licensing",
"creator": {
"@type": "Organization",
"name": "SeoBeen Analytics Lab"
},
"caption": "The Modern Enterprise SEO Attribution Funnel Model showing first-touch to customer LTV",
"representativeOfPage": true,
"width": "1280",
"height": "720"
}3. Managing Vector Graphics (SVG), WebGL, and Dynamic Canvas Assets
Modern interactive websites frequently render technical architectures, charts, and product 3D previews using client-side SVG, HTML5 Canvas, or WebGL shaders. While human users perceive rich interactive visuals, headless search engine crawlers frequently fail to execute continuous WebGL frame buffers during standard crawl cycles:
- Inline SVG Semantic Tagging: Always wrap inline
<svg>elements with accessible<title>and<desc>tags containing descriptive entity terms. Multimodal crawlers parse the DOM tree directly to extract vector node labels. - Prerendered Raster Fallbacks: For Canvas and WebGL graphs, generate automated server-side WebP or PNG snapshots using headless Chromium Puppeteer pipelines. Expose these static raster snapshots via standard
<picture>elements so vision encoders can vectorize the visual data immediately without waiting for JavaScript execution. - Visual Sitemap Protocols: Ensure all high-priority architectural diagrams, schematics, and product visuals are indexed in dedicated Google Image XML Sitemaps with explicit
<image:loc>,<image:title>, and<image:geo_location>tags.
Chapter 4: Video SEO in the Era of Video-LLMs
Search engines no longer rely on users to click through to YouTube to watch a full 20-minute video. Video-language models (such as Video-LLaVA and Google VideoPrism) ingest entire video streams, segmenting footage into discrete temporal scenes and transcribing audio tracks with acoustic precision.
1. Temporal Keyframe Indexing and Seek Actions
To enable Google to extract specific video segments for featured snippets and AI Overviews, you must expose temporal chapter landmarks via VideoObject structured data with Clip and SeekToAction specifications:
{
"@context": "https://schema.org",
"@type": "VideoObject",
"name": "How to Build an Enterprise SEO BigQuery Data Pipeline",
"description": "Complete masterclass detailing how to export Google Search Console logs to BigQuery and execute SQL analytics.",
"thumbnailUrl": "https://seobeen.com/uploads/content/video-thumbnail-bigquery-pipeline.jpg",
"uploadDate": "2026-09-16T10:00:00+03:30",
"duration": "PT14M28S",
"embedUrl": "https://www.youtube.com/embed/dQw4w9WgXcQ",
"hasPart": [
{
"@type": "Clip",
"name": "GCP Project Provisioning and IAM Permissions",
"startOffset": 0,
"endOffset": 195,
"url": "https://seobeen.com/blog/multimodal-ai-search#clip-gcp"
},
{
"@type": "Clip",
"name": "Configuring Search Console Bulk Data Export",
"startOffset": 196,
"endOffset": 480,
"url": "https://seobeen.com/blog/multimodal-ai-search#clip-gsc-export"
},
{
"@type": "Clip",
"name": "Writing SQL Queries for Striking Distance Queries",
"startOffset": 481,
"endOffset": 868,
"url": "https://seobeen.com/blog/multimodal-ai-search#clip-sql-queries"
}
]
}2. Audio-Visual Narrative Coherence
Video-LLMs measure audio-visual semantic alignment. If a speaker is explaining SQL syntax while the video displays a generic b-roll clip of someone typing on a laptop in a coffee shop, the semantic score plummets. When creating technical video content, ensure on-screen visuals explicitly demonstrate the concepts being narrated to maximize multimodal relevance scoring.
Chapter 5: Audio, Podcasts, and Speech Semantics
With the rise of voice search in smart vehicles, connected home devices, and mobile AI assistants, spoken audio has become a primary search surface. Modern search engines transcribe audio streams using deep neural speech recognition models (like OpenAI Whisper and Google Chirp), aligning phonemes with timestamps to index exact moments in podcast episodes and conference recordings.
Figure 3: AI Search Telemetry Framework — Monitoring Retrieval Confidence, Modality Distribution, and Zero-Click Footprints.
1. Audio Optimization Best Practices
- Synchronized WebVTT Transcripts: Always pair audio files with timed caption files (
.vttor.srt) hosted on your server. This eliminates crawler transcription ambiguities and guarantees accurate entity spelling (e.g., distinguishing “BigQuery” from “big query”). - Acoustic Fidelity & Noise Floor: AI speech transcribers exhibit high error rates on low-bitrate recordings with heavy background hum. Record at 48kHz / 24-bit with studio noise-cancellation to guarantee 99%+ automatic speech-to-text accuracy.
- Structured Episode Packaging: Deploy
PodcastEpisodeandAudioObjectschema markup containing exact duration, creator credentials, and episodic series taxonomies. - Podcasting 2.0 Transcript Namespace: In your RSS feed, implement the
<podcast:transcript>tag withtype="text/vtt"to allow podcast search crawlers to index and verify every spoken term automatically.
2. Semantic Speech Intent Resolution and Acoustic Phoneme Mapping
When users issue voice queries via smart assistants (Apple Siri, Google Assistant, OpenAI Voice), speech engines perform continuous acoustic phonetic mapping. Unlike typed queries where users write concise keyword fragments, voice search queries average 8 to 14 words and contain heavy colloquial phrasing, pauses, and indirect requests.
To capture conversational speech intent, structure your written content using conversational Question-and-Answer formatting. Include explicit sentence triggers such as “The primary reason for...” or “To resolve this issue, execute...”. These structural sentence frames allow voice assistants to parse the exact answer block and read it aloud as a direct spoken response.
Chapter 6: Multimodal Knowledge Graphs and Cross-Media Entity Grounding
Search engines do not process visual and auditory data in a vacuum; they ground multimodal observations into the Google Knowledge Graph and public knowledge bases like Wikidata. Grounding transforms an anonymous picture of a server rack into a verified semantic entity with recognized properties, relationships, and trust scores.
Figure 4: Multimodal Knowledge Graph Architecture — Linking Textual Entities to Visual Wikidata IDs and Real-World Ontologies.
1. Entity Disambiguation Across Modalities
When an AI model analyzes an image containing a technical device alongside text explaining its architecture, it executes entity resolution. By incorporating explicit Wikidata references (sameAs) in your JSON-LD, you guide the search engine's knowledge graph compiler to link your media directly to established global concepts:
{
"@context": "https://schema.org",
"@type": "TechArticle",
"headline": "The Multimodal AI Search Playbook for 2026",
"about": [
{
"@type": "Thing",
"name": "Multimodal Learning",
"sameAs": "https://www.wikidata.org/wiki/Q110821034"
},
{
"@type": "Thing",
"name": "Vector Database",
"sameAs": "https://www.wikidata.org/wiki/Q116873138"
},
{
"@type": "Thing",
"name": "Google Gemini",
"sameAs": "https://www.wikidata.org/wiki/Q123683050"
}
]
}The Danger of Generic Stock Imagery:
Using stock photography found on thousands of other domains destroys your visual entity grounding. Multimodal models recognize duplicate image hashes immediately, classifying the image as non-informative boilerplate and stripping it from visual search carousels.
Chapter 7: Practical Python Implementation: Vectorizing Images with SigLIP
To understand how modern search engines rank your visual content against user queries, enterprise SEO engineers can run local multimodal vectorization pipelines using Python and Hugging Face Transformers. This enables automated testing of your visual assets before deployment:
# Python Multimodal Similarity Scoring via SigLIP / CLIP
import torch
from PIL import Image
from transformers import AutoProcessor, AutoModel
import numpy as np
# Load Google's SigLIP model for vision-language alignment
model_name = "google/siglip-base-patch16-224"
processor = AutoProcessor.from_pretrained(model_name)
model = AutoModel.from_pretrained(model_name)
# Define target technical search queries
candidate_queries = [
"enterprise seo attribution funnel model",
"cloud data warehouse bigquery pipeline",
"core web vitals devtools performance telemetry"
]
# Load local diagram asset
image_path = "enterprise-seo-attribution-funnel-model.webp"
image = Image.open(image_path)
# Process multimodal inputs
inputs = processor(text=candidate_queries, images=image, padding="max_length", return_tensors="pt")
with torch.no_grad():
outputs = model(**inputs)
logits_per_image = outputs.logits_per_image
probs = torch.sigmoid(logits_per_image).cpu().numpy()
for query, score in zip(candidate_queries, probs[0]):
print(f"Query: '{query}' -> Multimodal Relevance Score: {score:.4f}")By executing this script across your visual library, you can identify images that have low semantic alignment with your target keyword clusters and replace them with clearer, high-scoring technical diagrams.
Chapter 8: Generative Engine Optimization (GEO) for Visual Answer Boxes in SearchGPT & Gemini Live
As conversational AI agents become primary browsing interfaces, Generative Engine Optimization (GEO) requires catering to live visual synthesis. In Gemini Live and SearchGPT, users frequently interact with search models through active camera feeds, asking real-time questions about physical objects and environments.
1. Visual Hierarchy and Focal Anchor Points
When an AI agent parses an image uploaded by a user, it segments the visual scene into bounding boxes. Web pages that provide high-contrast, annotated visual diagrams where key components are numbered or clearly tagged serve as optimal reference sources. The AI model borrows these labeled diagrams to explain answers to users, citing the hosting website as the primary authority.
2. The Zero-Click Multimodal Brand Defense
Multimodal search often satisfies user queries without requiring a traditional click to your domain—the user gets their answer directly from the AI-annotated diagram or video clip. To protect commercial enterprise value in a zero-click environment, implement Visual Brand Signatures:
- Embed clean, unobtrusive brand marks and website URLs in the corner of all original architectural flowcharts and diagrams.
- Use distinct corporate design color palettes across technical illustrations so that users immediately recognize your publication across AI Overviews and Google Lens results.
- Include high-value callouts inside diagrams (e.g., “Source: SeoBeen Analytics Lab Benchmarks”) that encourage curious researchers to seek out the full interactive tool.
Chapter 9: Actionable Optimization Checklist for Multimodal AI Search
To ensure complete readiness for multimodal search engines, execute this comprehensive audit checklist across every digital asset:
| Media Modality | Technical Optimization Criteria | Required Schema & Meta Standards | Verification Tooling |
|---|---|---|---|
| Visual & Diagrams | 1200px+ resolution, clean sans-serif typography, high contrast, zero watermarks. | ImageObject with license, creator, and caption properties. |
Google Lens, Google Rich Results Test, SigLIP Python similarity. |
| Video & Motion | 1080p+, timestamped chapter markers, synchronous audio-visual explanation. | VideoObject with hasPart (Clip) and duration. |
YouTube Video Indexing Report in Search Console, Whisper transcription. |
| Audio & Podcasts | 48kHz / 24-bit recording, low noise floor, synchronized .vtt captions. |
AudioObject and PodcastEpisode with explicit author links. |
Google Podcasts Manager, Speechmatics/Whisper accuracy check. |
| Entities & Knowledge | Disambiguate all core subjects using authoritative Wikidata and Wikipedia URIs. | about, mentions, and sameAs schema mapping. |
Google Knowledge Graph Search API, Diffbot Entity API. |
